$2.21000-2999 Piece/Pieces
$23000-9999 Piece/Pieces
$1.85≥10000Piece/Pieces
| Tipo di pagamento: | T/T,D/P,D/A,Paypal,Money Gram,Western Union |
| Incoterm: | EXW,FOB |
| Trasporti: | Ocean,Land,Air,Express |
| Porta: | Shenzhen |
Modello: MX15W-0502000BX
marchio: Potenza di mingxin
Brand Name: MingXin
Model Number: MX15W1-0502000BX
Tipo Di Output: DC
Connection: Plug In

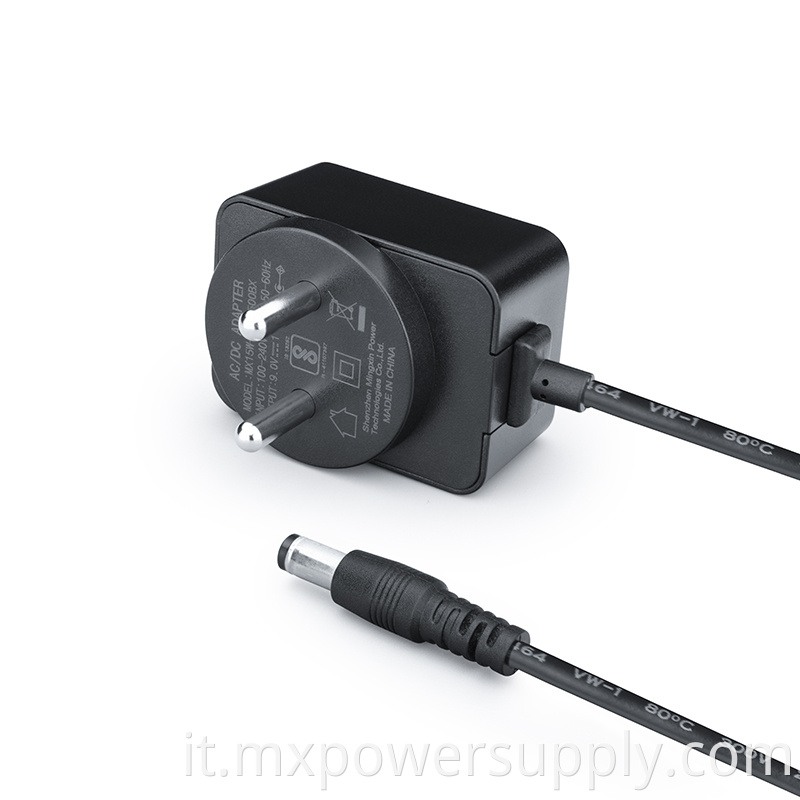

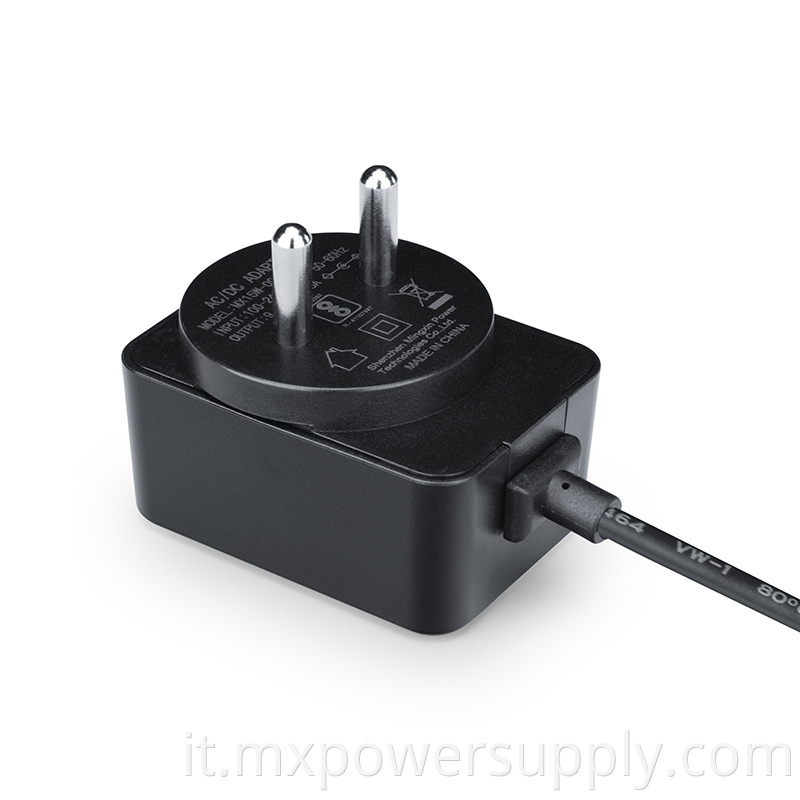

Nome prodotto: BIS Certificate 5V 2A Power Adapter
Input: 100-240v 50/60hz
Color: Black White
Efficiency: DOE VI ERP2
Protections: OCP OTP OVP SCP
AC Plug: Indian plug
Sertifikasi: CE BIS UL
OEM/ODM: Support
Warranty: 2 Years
Luogo D'origine: Cina
Material: Pc Fireproof Material
Place Of Origin: Guangdong, China
| Unità vendibili | : | Piece/Pieces |
| Tipo pacchetto | : | 1. PE BAD e BASH BAD e BASSO INTERNO 2. PACCHETTO BUNGO 3. SCUCAGGIO PERSONALI |
| Esempio immagine | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
Input
|
100~240VAC&50-60Hz Typ.
90~264VAC&47~63Hz Range |
|
Output
|
DC 5V1A 5V2A 5V2.5A 5V3A 12V1A 9V1.5A 14.5V1A 9V1A etc 15W
|
|
Energy Level
|
ErP(EU) 2019/2020 CoC V5
DoE Level VI U.S.EISA 2007 |
|
WithstandingVoltage
|
3000VAC 1Minute 10mA Max
|
|
Ripple&Noise
|
<120mV(50mV Min)
|
|
Safety Standard
|
IS13252(Part1):2010/IEC60950-1:2005
|
|

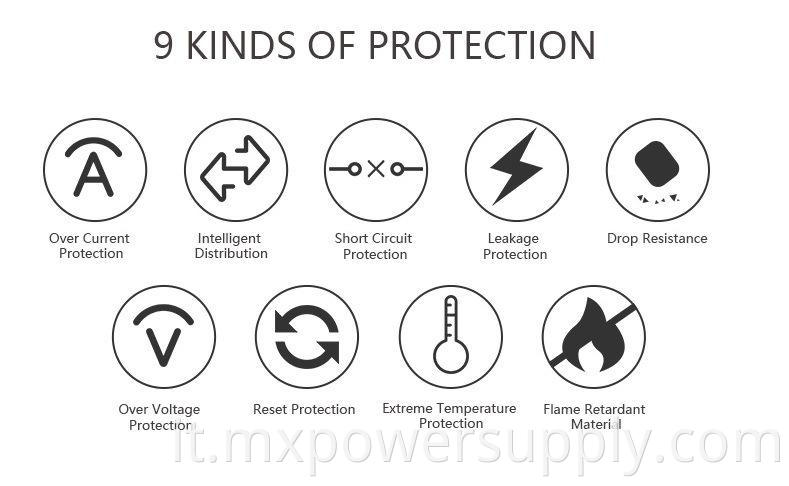

Protections
|
Short Circuit Protection, Over Voltage Protection
Over Current Protection, Over Temperature Protection |
|
Certifications
|
CE, GS, CB, UL, ETL, KC, PSE, BS, BIS, SAA, FCC, ROHS, BSMI, PSB
|
|
Connector
|

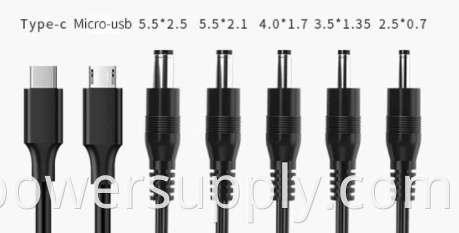

DC Plug:
5.5mm*2.1mm, 5.5mm*2.5mm, 4.0mm*1.7mm,3.5mm*1.35mm, 2.5mm*0.7mm, Type c/Micro
AC plug:
AU/EU/US/CN/KC/JP/UK |
|
Burn-in
|
100%, full-load 4 Hours Min.
|
|
Dimension
|
53*39*42mm
|
|
Application
|
CCTV Camear LED lighting, communication, appliances, security cctv camera, medical, audio, 3D printer, recliner massage chair, Laptop, vending machine, water purifier, etc
|
|
1. DC plug optional (5.5*2.5mm, 5.5*2.1mm, 3.5*1.35mm, 4.0*1.7mm, Micro USB, Stripped & tinned etc)
|
|
2. AC plug of plug in adapter optional (USA, European, Australia, United Kingdom, Korean, Japan, Indian, Brazil, South Africa others). AC sockets of desktop power supply optional (C6, C8, C14).
|
|
3. Custom cable length(1M, 1.2M, 1.5M, 1.8M etc), wire gauge and style( Round or flat).
|
|
4. Custom shell color (Black, white or transparent color).
|
|
5. Add your Logo or brand mark on the label.
|
|
6. Add Magnet ring or On off switch on cable.
|
|
7. Custom Packaging.
|
