$2.53-1999 Piece/Pieces
$2.32000-4999 Piece/Pieces
$2.095000-19999 Piece/Pieces
$1.95≥20000Piece/Pieces
Brand Name: Mingxin Power
Model Number: MX15W-1201000V
Tipo Di Output: DC
Connection: Plug In

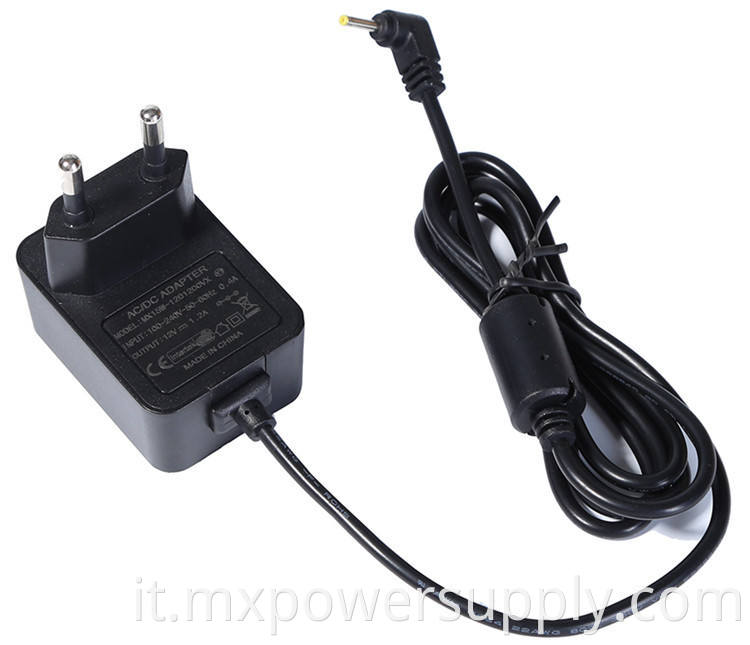

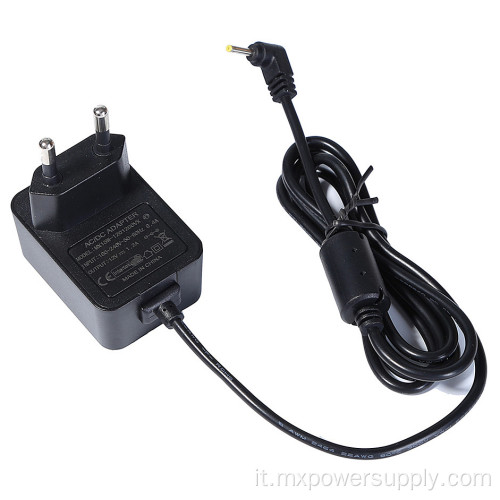

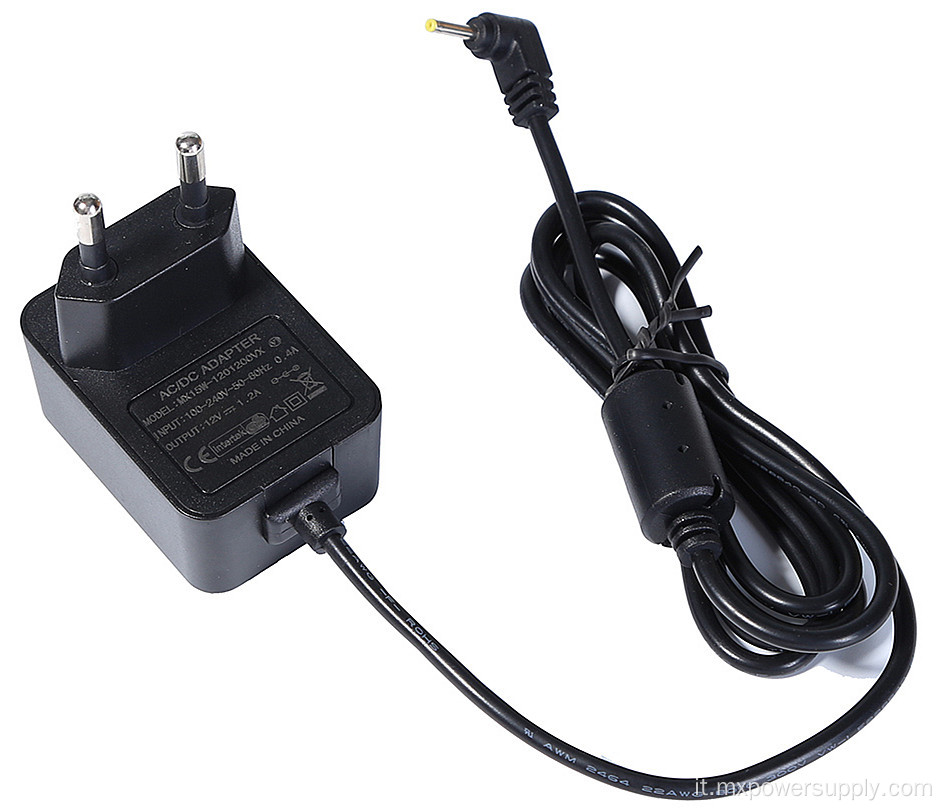

Nome prodotto: EU plug 12 volt 1 amp power adapter
Input: Ac 100-240v 50-60hz
Output: 12v1a (other parameter can customize)
Certificati : EN 62368
Warranty: 2 Years
Protection: Ocp Ovp Otp Scp
DC Wire: 1.5m or customized
Efficiency: 85% Min Average Level
DC Jack (plug): 5.5*2.1*10 / 5.5*2.5*10 Mm Barrel Plug
Plug Type: EU Plug
Place Of Origin: Guangdong, China
| Unità vendibili | : | Piece/Pieces |
| Tipo pacchetto | : | PE Borsa+Box White+Cartone |
| Esempio immagine | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Product Name | CE EMC LVD GS KC certified EU/KR plug 12 volt 1 amp power adapter 12w 15w 16v 700ma ac dc adaptor 12v |
Work Mode | CV CC Mode or Regulated current mode for option |
Material | ABS+fireproof PC |
Function | power supply |
Package | PE bag+Paper card partion+Carton |
Output Power | 12W-15W |
AC Input | 100-240Vac,50-60Hz |
DC Output | 12v1a (more parameter can be customized ) |
Work Mode | Constant voltage and Constant Current |
Short Circuit protection | Yes |
Burn-In Test | 100% full load at min 4 hours |
Ripple | ≤120mv |
No load consumption | ≤ 0.3w |
Leakage current | ≤0.25ma |
MTBF | 50K hours |
DC wire | 1.5m length |
DC connector | 5.5*2.5/2.1 , 3.5*1.35 or customized specification |
Certification | CE GS EMC Rohs and Efficiency 6 level |
Physical Dimension | 72*43*31mm |
Warranty | 2 years |
Plug type | Wall mounted type US plug |
Certification standard | IEC/EN62368 CE GS |
Color | Black or White |
CE EMC LVD GS KC certificato eu/kr plug 12 volt 1 amp Adattatore di alimentazione 12w 15w 16v 700Ma AC DC Adattatore 12V
