$3.23-999 Piece/Pieces
$3.051000-2999 Piece/Pieces
$2.973000-19999 Piece/Pieces
$2.6≥20000Piece/Pieces
Modello: MX24W1-2401000K
marchio: Mingxin Power/OEM/ODM
Brand Name: Mingxin Power
Model Number: MX24W-2401000K
Tipo Di Output: DC
Connection: Plug In

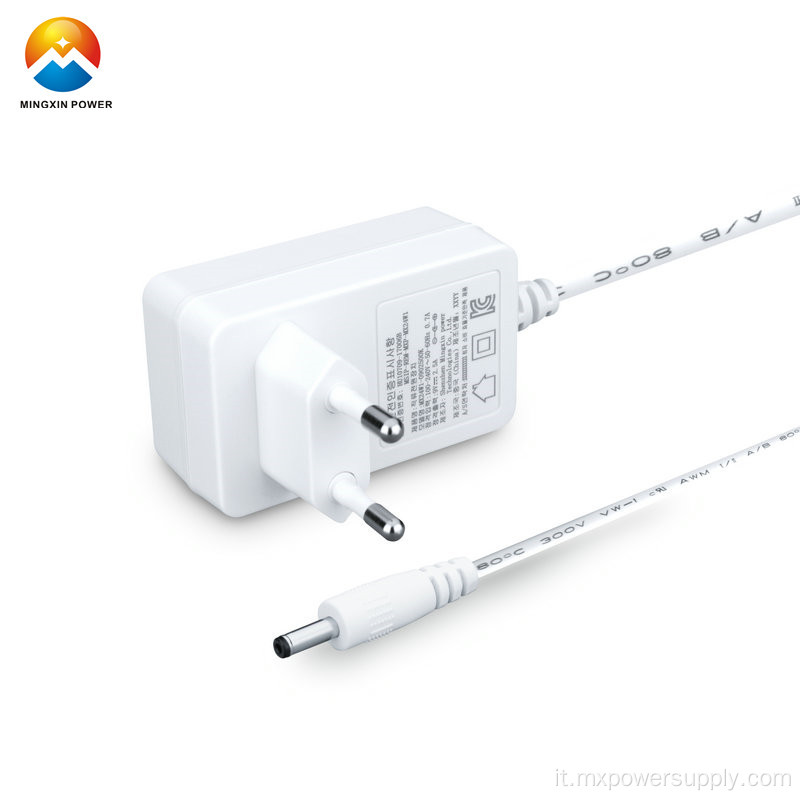

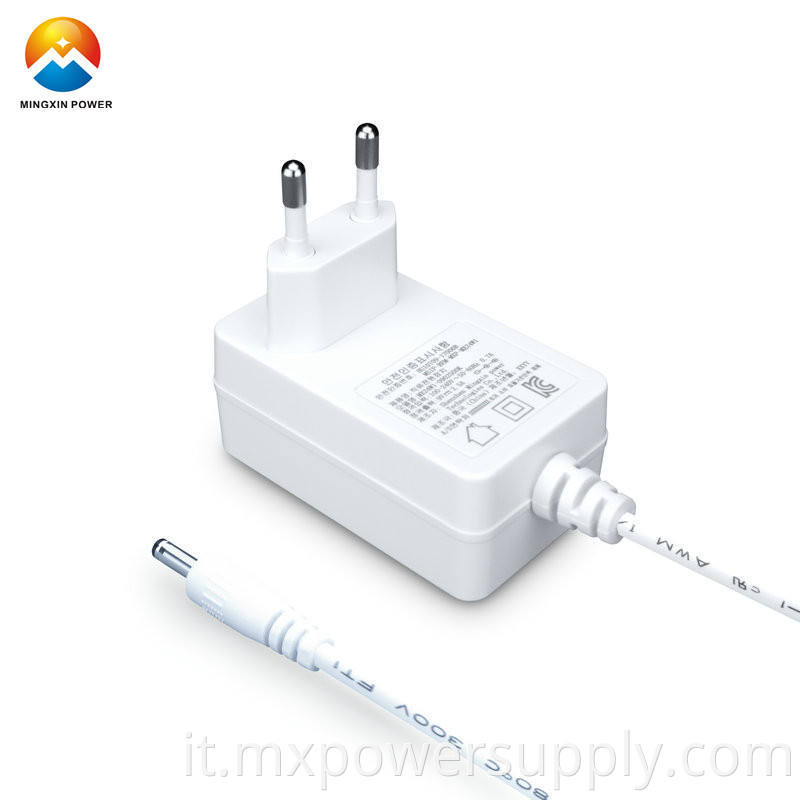

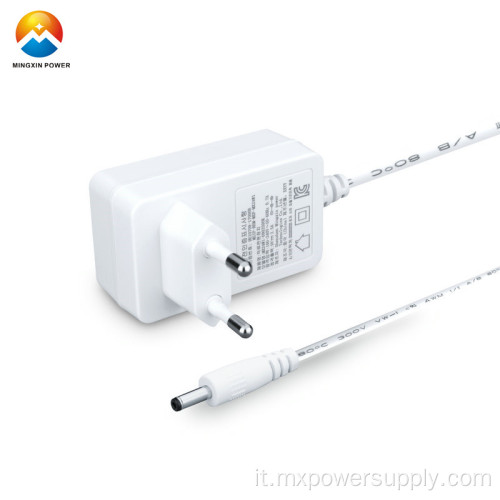

Nome prodotto: smps 24v1a power adapter for air purifier
Aplikasi: Air purifier, dehumidifier,fascia gun ,massager
Certificati : Kc Kcc Rohs
Input Voltage: Ac100~240v 50/60hz
Output: DC24V1A (12V2A for option )
AC Plug: Korea Plug
DC Wire: 1.5m length or more
DC Connector: 5.5*2.1/5.5*2.5mm/3.5*1.35mm
Protection: Ocp Ovp Scp Opp
Color: White
Place Of Origin: Guangdong, China
| Unità vendibili | : | Piece/Pieces |
| Esempio immagine | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Specifica
|
Product Name
|
factory oem smps 24v1a kc certification 12v 2a wire adapter power adaptor white for air purifier
|
|
Output power
|
24W
|
|
Dimension
|
72*43*31mm
|
|
Color
|
Black or White for option
|
|
Warranty
|
2 years
|
|
Application
|
Air Purifier ,Dehumidifier ,Fascia Gun ,Massager and more .
|
|
AC plug
|
Korea plug
|
|
Type
|
Wall mount type /Desktop type /Interchangeable plugs type for option
|
|
|
|
|
Technical Parameters
|
|
|
Universal AC Input
|
100-240Vac,50-60Hz
|
|
Output
|
DC 24V1A ,more specification can be customized
|
|
MTBF
|
50K hours
|
|
Burn-In test
|
100% full load at min 4 hours
|
|
No-load consumption
|
≤ 0.3W
|
|
leakage current
|
≤0.25ma
|
|
Protection
|
OVP ,OCP ,SCP ,OTP
|
|
Operating temperature
|
0~40℃
|
|
Hi-pot test
|
3KV
|
|
Indoor use
|
|
