$1.952000-4999 Piece/Pieces
$1.85000-9999 Piece/Pieces
$1.9≥10000Piece/Pieces
| Tipo di pagamento: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Trasporti: | Ocean,Land,Air,Express |
| Porta: | SHENZHNE |
Modello: MX15W1-2400500UX
marchio: Mingxin Power /OEM /ODM
Type: Power Supply Adapter
Utilizzo: Universal
Materiale: Materiale ignifugo per PC
Protezione: Protezione da cortocircuito
Function: Switching Power Supply
Brand Name: Mingxin
Model Number: MX15W1-1501000K
Porta: DC
Input Voltage And Current: 100-240V AC 50/60Hz
Output Voltage And Current: 24V 0.5A
Output Power: 12W
Supports Solar Energy: NO
Input: 100-240VAC 50/60HZ
Output: 24V/0.5A
Color: Black White
Efficiency: DOE Level VI ERP
Protections: OCP OTP OVP SCP
OEM/ODM: Yes
Warranty: 2 years
Place Of Origin: Guangdong, China

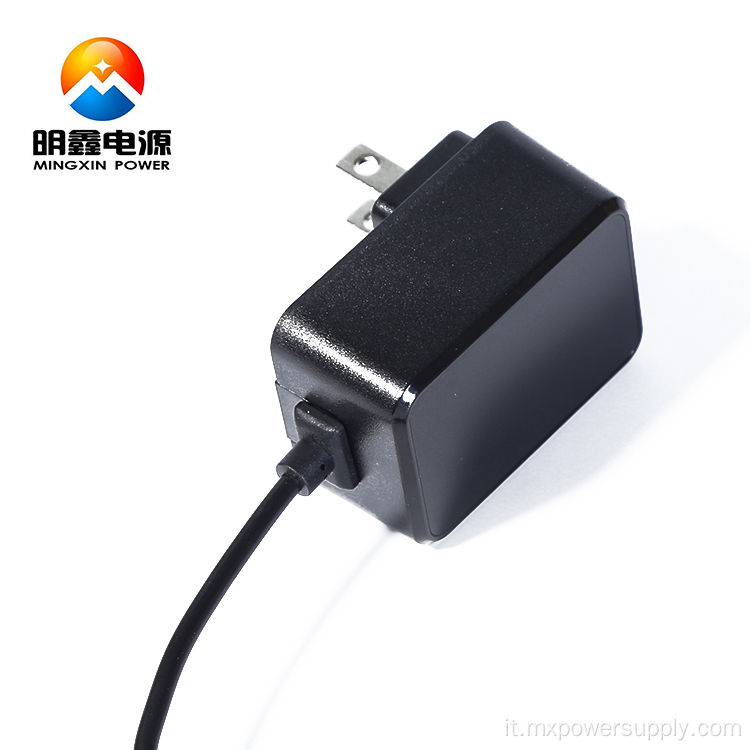

Nome prodotto: 24V0.5A US plug power adapter
Certificati : CB UL FCC CE GS SAA C-TICK RCM KC
Sertifikasi: UL FCC
| Unità vendibili | : | Piece/Pieces |
| Tipo pacchetto | : | Pacchetto personalizzato per sacca e scatola bianca |
| Esempio immagine | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
Input
|
100~240VAC&50-60Hz Typ.
90~264VAC&47~63Hz Range |
|
Output
|
Korean standard OEM 24v 0.5a ac dc power adapter
|
|
Energy Level
|
ErP(EU) 2019/2020 CoC V5
DoE Level VI U.S.EISA 2007 |
|
WithstandingVoltage
|
3000VAC 1Minute 10mA Max
|
|
Ripple&Noise
|
<120mV(50mV Min)
|
|
Safety Standard
|
IEC62368, EN62368, AS/NZS CISPR 32: 2015, UL62368, K60950, IEC 62321
|
|
Certifications
|
CE, GS, CB, UL, ETL, KC, PSE, BS, BIS, SAA, FCC, ROHS, BSMI, PSB
|
|
Protections
|
Short Circuit Protection, Over Voltage Protection
Over Current Protection, Over Temperature Protection |
|
Connector
|
DC Plug:
5.5mm*2.1mm, 5.5mm*2.5mm, 4.0mm*1.7mm,3.5mm*1.35mm, 2.5mm*0.7mm, Type c/Micro
AC plug:
AU/EU/US/CN/KC/JP/UK |
|
Burn-in
|
100%, full-load 4 Hours Min.
|
|

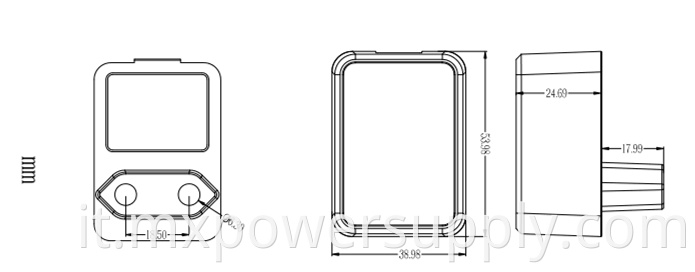

Dimension
|
53*39*25mm
|
|
Application
|
CCTV Camear LED lighting, communication, appliances, security cctv camera, medical, audio, 3D printer, recliner massage chair,
Laptop, vending machine, water purifier, etc |
|
DC plug optional (5.5*2.5mm, 5.5*2.1mm, 3.5*1.35mm, 4.0*1.7mm, Micro USB, Stripped & tinned etc)
|
|
AC plug of plug in adapter optional (USA, European, Australia, United Kingdom, Korean, Japan, Indian, Brazil, South Africa others). AC sockets of desktop power supply optional (C6, C8, C14).
|
|
Custom cable length(1M, 1.2M, 1.5M, 1.8M etc), wire gauge and style( Round or flat).
|
|
Custom shell color (Black, white or transparent color).
|
|
Add your Logo or brand mark on the label.
|
|
Add Magnet ring or On off switch on cable.
|
|
Custom Packaging.
|
